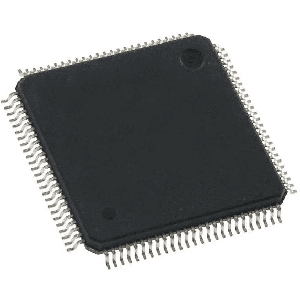

PIC24FJ128GC010-I/PT

PIC24FJ128GC010T-I.pdf

Advanced Analog Features

• 12-Bit, up to 50-Channel, High-Speed, Pipeline Analog-to-Digital Converter (A/D):

  - Conversion rates up to 10 Msps

  - Compatibility features for low conversion rates

  - Flexible operating modes with auto-accumulate, Threshold Detect and channel scan using sample lists

  - Conversion available during Sleep and Idle

• 16-Bit Sigma-Delta Analog-to-Digital Converter (A/D):

  - Programmable data rate with dithering option and adjustable oversampling ratios

  - Two differential channels - Configurable input gain stage

• Two 10-Bit Digital-to-Analog Converters (DAC):

  - Fast settling time supports 1 Msps update rate

• Two Rail-to-Rail, Input/Output, General Purpose Operational Amplifiers:

  - 2.5 MHz gain bandwidth product (typical)

  - Flexible input multiplexing options

  - Optional Comparator mode

• Three Rail-to-Rail, Enhanced Analog Comparators with Programmable Input/Output Configuration

• Three On-Chip Programmable Voltage References

• Charge Time Measurement Unit (CTMU):

  - Used for capacitive touch sensing, up to 50 channels

  - Time measurement down to 100 ps resolution

  - Operation in Sleep mode

Extreme Low-Power Features

• Multiple Power Management Options for Extreme Power Reduction:

  - VBAT allows for lowest power consumption on backup battery (with or without RTCC)

  - Deep Sleep allows near total power-down, with the ability to wake-up on internal or external triggers

  - Full RAM and state retention in select Deep Sleep and VBAT modes

  - Sleep and Idle modes selectively shut down peripherals and/or core for substantial power reduction and fast wake-up

  - Doze mode allows CPU to run at a lower clock speed than peripherals

• Alternate Clock modes allow On-the-Fly Switching to a Lower Clock Speed for Selective Power Reduction

• Extreme Low-Power Current Consumption for Deep Sleep:

  - WDT: 270 nA @ 3.3V, typical - RTCC: 350 nA @ 32 kHz, 3.3V, typical

  - Deep Sleep current, 75 nA, 3.3V, typical
