Part Status | Not For New Designs |
|
FET Type | P-Channel |
|
Technology | MOSFET (Metal Oxide) |
|
Drain to Source Voltage (Vdss) | 30 V |
|
Current - Continuous Drain (Id) @ 25°C | 4A (Ta) |
|
Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 10V |
|
Rds On (Max) @ Id, Vgs | 50mOhm @ 4A, 10V |
|
Vgs(th) (Max) @ Id | 1.3V @ 250µA |
|
Gate Charge (Qg) (Max) @ Vgs | 14 nC @ 10 V |
|
Vgs (Max) | ±12V |
|
Input Capacitance (Ciss) (Max) @ Vds | 645 pF @ 15 V |
|
FET Feature | - |
|
Power Dissipation (Max) | 1.4W (Ta) |
|
Operating Temperature | -55°C ~ 150°C (TJ) |
|
Mounting Type | Surface Mount |
|

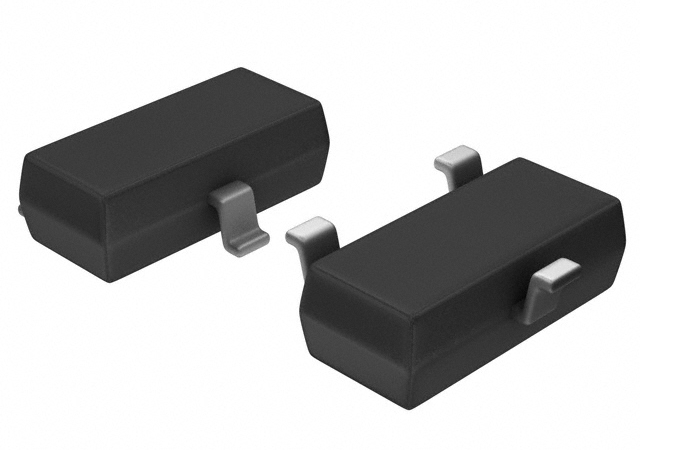

Supplier Device Package | SOT-23-3 |
|
Package / Case | TO-236-3, SC-59, SOT-23-3 |
|
