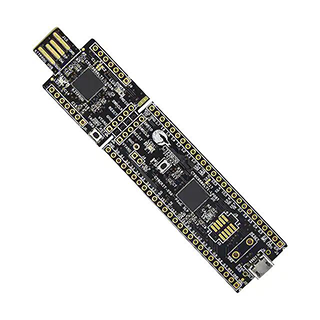

CY8CKIT-059

CY8CKIT-059.pdf

General Description

PSoC® 5LP is a true programmable embedded system-on-chip, integrating configurable analog and digital peripherals, memory, anda microcontroller on a single chip. The PSoC 5LP architecture boosts performance through:

32-bit Arm Cortex-M3 core plus DMA controller and digital filter processor, at up to 80 MHz

Ultra low power with industry's widest voltage range

Programmable digital and analog peripherals enable custom functions

Flexible routing of any analog or digital peripheral function to any pin

PSoC devices employ a highly configurable system-on-chip architecture for embedded control design. They integrate configurableanalog and digital circuits, controlled by an on-chip microcontroller. A single PSoC device can integrate as many as 100 digital andanalog peripheral functions, reducing design time, board space, power consumption, and system cost while improving system quality.

Features

Operating characteristics

Voltage range: 1.71 to 5.5 V, up to 6 power domains

Temperature range (ambient): –40 to 85 °C

[1]Extended temperature parts: –40 to 105 °C DC to 80-MHz operationPower modes•Active mode 3.1 mA at 6 MHz, and 15.4 mA at 48 MHz

•2-µA sleep mode

•300-nA hibernate mode with RAM retentionBoost regulator from 0.5-V input up to 5-V output

Performance

32-bit Arm Cortex-M3 CPU, 32 interrupt inputs

24-channel direct memory access (DMA) controller24-bit 64-tap fixed-point digital filter processor (DFB)

Memories

Up to 256 KB program flash, with cache and security features

Up to 32 KB additional flash for error correcting code (ECC) Up to 64 KB RAM2 KB EEPROM

Digital peripherals

Four 16-bit timer, counter, and PWM (TCPWM) blocks

I2C, 1 Mbps bus speed

USB 2.0 certified Full-Speed (FS) 12 Mbps peripheral inter-face (TID#10840032) using internal oscillator

[2]Full CAN 2.0b, 16 Rx, 8 Tx buffers

20 to 24 universal digital blocks (UDB), programmable to create any number of functions:

•8-, 16-, 24-, and 32-bit timers, counters, and PWMs

•I2C, UART, SPI, I2S, LIN 2.0 interfaces

•Cyclic redundancy check (CRC)

•Pseudo random sequence (PRS) generators

•Quadrature decoders•Gate-level logic functionsProgrammable clocking

3- to 74-MHz internal oscillator, 1% accuracy at 3 MHz

4- to 25-MHz external crystal oscillator

Internal PLL clock generation up to 80 MHz

Low-power internal oscillator at 1, 33, and 100 kHz32.768-kHz external watch crystal oscillator

12 clock dividers routable to any peripheral or I/O
