LAN9252/PT

00001909A.pdf

Highlights

• 2/3-port EtherCAT slave controller with 3 Fieldbus Memory Management Units (FMMUs) and 4 SyncManagers

 • Interfaces to most 8/16-bit embedded controllers and 32-bit embedded controllers with an 8/16-bit bus

• Integrated Ethernet PHYs with HP Auto-MDIX

• Wake on LAN (WoL) support

• Low power mode allows systems to enter sleep mode until addressed by the Master • Cable diagnostic support

• 1.8V to 3.3V variable voltage I/O

• Integrated 1.2V regulator for single 3.3V operation

 • Low pin count and small body size package

Target Applications

• Motor Motion Control

• Process/Factory Automation

• Communication Modules, Interface Cards

• Sensors

• Hydraulic & Pneumatic Valve Systems

• Operator Interfaces

Key Benefits

• Integrated high

-performance 100Mbps Ethernet transceivers

- Compliant with IEEE 802.3/802.3u (Fast Ethernet)

- 100BASE-FX support via external fiber transceiver

- Loop-back modes - Automatic polarity detection and correction

- HP Auto-MDIX

• EtherCAT slave controller

- Supports 3 FMMUs

- Supports 4 SyncManagers

- Distributed clock support allows synchronization with other EtherCAT devices

- 4K bytes of DPRAM

• 8/16-Bit Host Bus Interface

- Indexed register or multiplexed bus

- Allows local host to enter sleep mode until addressed by EtherCAT Master

- SPI / Quad SPI support

• Digital I/O Mode for optimized system cost

• 3rd port for flexible network configurations

• Comprehensive power management features

- 3 power-down levels - Wake on link status change (energy detect)

- Magic packet wakeup, Wake on LAN (WoL), wake on broadcast, wake on perfect DA

- Wakeup indicator event signal

• Power and I/O

- Integrated power-on reset circuit

- Latch-up performance exceeds 150mA per EIA/JESD78, Class II

- JEDEC Class 3A ESD performance

- Single 3.3V power supply (integrated 1.2V regulator)

• Additional Features - Multifunction GPIOs

- Ability to use low cost 25MHz crystal for reduced BOM

• Packaging

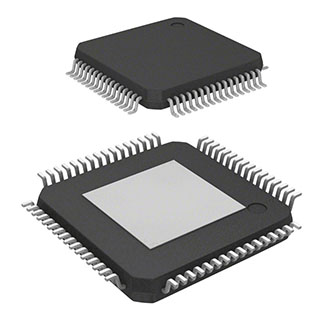

- Pb-free RoHS compliant 64-pin QFN or 64-pin TQFPEP

• Available in commercial, industrial, and extended industrial* temp. ranges *Extended temp. (105ºC) is supported only in the 64-QFN with an external voltage regulator (internal regulator must be disabled) and 2.5V (typ) Ethernet magnetics.
