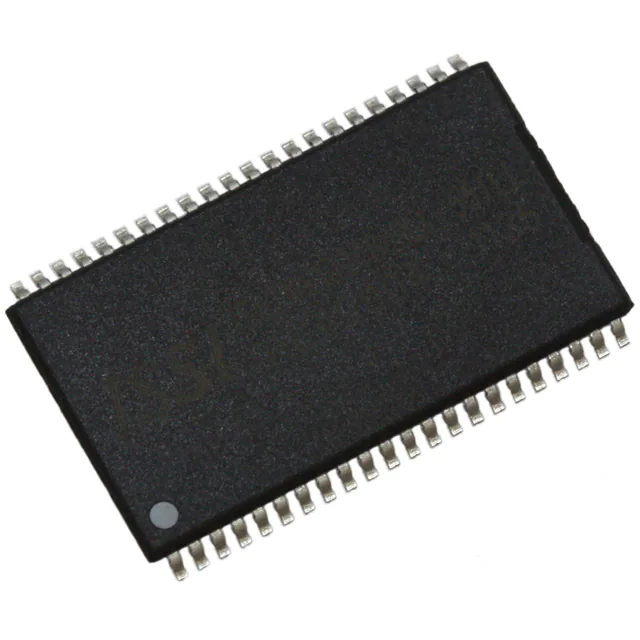

IS61LV5128AL-10TLI

IS61LV5128AL.pdf

FEATURES

• High-speed access times: 10, 12 ns

• High-performance, low-power CMOS process

• Multiple center power and ground pins for greater noise immunity

• Easy memory expansion with CE and OE options

• CE power-down • Fully static operation: no clock or refresh required

• TTL compatible inputs and outputs

• Single 3.3V power supply

• Packages available: – 36-pin 400-mil SOJ – 36-pin miniBGA – 44-pin TSOP (Type II)

• Lead-free available

DESCRIPTION

The ISSI IS61LV5128AL is a very high-speed, low power, 524,288-word by 8-bit CMOS static RAM. The IS61LV5128AL is fabricated using ISSI's high-performance CMOS technology. This highly reliable process coupled with innovative circuit design techniques, yields higher performance and low power consumption devices. When CE is HIGH (deselected), the device assumes a standby mode at which the power dissipation can be reduced down to 250 µW (typical) with CMOS input levels. The IS61LV5128AL operates from a single 3.3V power supply and all inputs are TTL-compatible. The IS61LV5128AL is available in 36-pin 400-mil SOJ, 36- pin mini BGA, and 44-pin TSOP (Type II) packages.
