BZT52C2V4S-BZT52C56S(200mW)(SOD-323).pdf
Features
• Planar Die Construction
• Ideally Suited for Automated Assembly Processes
• General Purpose Medium Current
• Halogen Free. “Green” Device (Note 1)
• Moisture Sensitivity Level 1
• Epoxy Meets UL 94 V-0 Flammability Rating
• Lead Free Finish/RoHS Compliant t ("P" Suffix Designates RoHS Compliant. See Ordering Information)
Maximum Ratings
• Operating Junction Temperature Range: -65°C to +150°C
• Storage Temperature Range: -65°C to +150°C
• Thermal Resistance :625°C/W Junction to Ambient

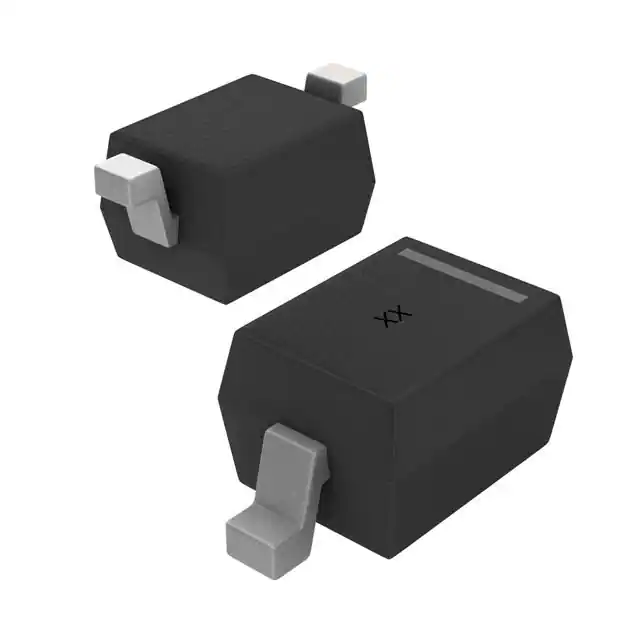

BZT52C18S-TP
