Broadcom BCM2711, quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
8GB LPDDR4-2400 SDRAM
2.4GHz and 5.0GHz IEEE 802.11b / g / n / ac wireless LAN, Bluetooth 5.0, BLE
True Gigabit Ethernet
2x USB 3.0 ports, 2x USB 2.0 ports
Fully backwards compatible 40-pin GPIO header
2x Micro HDMI ports which support a resolution up to 4K at 60Hz
2-channel MIPI DSI / CSI ports for camera and display
4-channel stereo audio and composite video port
MicroSD card slot for the OS and storage
5.1V, 3A via USB-C or GPIO
PoE (Power over Ethernet) suitable (with optional PoE HAT)

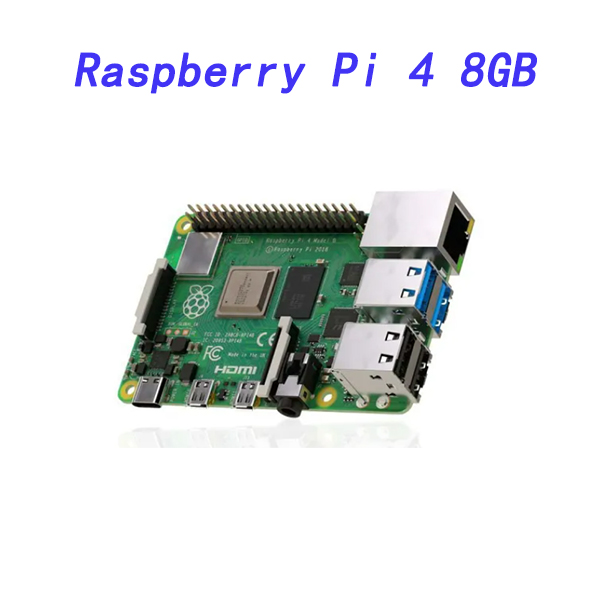

Raspberry Pi 4 Model B – 8GB RAM
