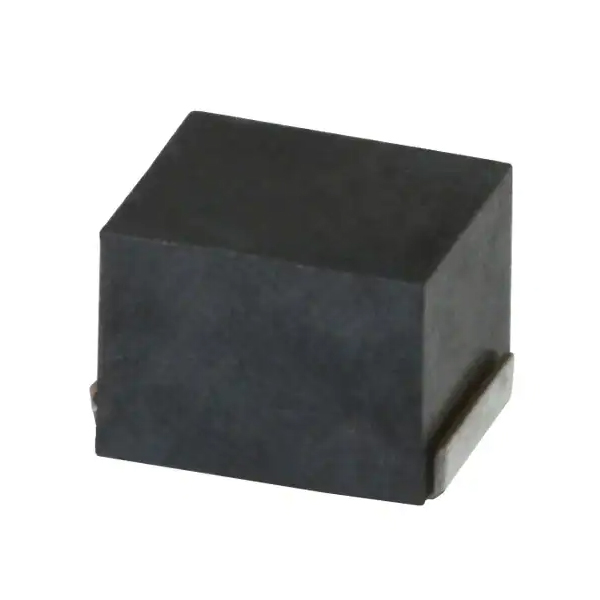

Category | Inductors, Coils, Chokes Fixed Inductors |
|
Mfr | TDK Corporation |
|
Series | NLV-PF |
|
Package |
|
|
Product Status | Not For New Designs |
|
Type | Drum Core, Wirewound |
|
Material - Core | Ferrite |
|
Inductance | 560 nH |
|
Tolerance | ±5% |
|
Current Rating (Amps) | 450 mA |
|
Current - Saturation (Isat) | - |
|
Shielding | Unshielded |
|
DC Resistance (DCR) | 550mOhm Max |
|
Q @ Freq | 30 @ 25.2MHz |
|
Frequency - Self Resonant | 180MHz |
|
Ratings | - |
|
Operating Temperature | -40°C ~ 105°C |
|
Inductance Frequency - Test | 25.2 MHz |
|
Mounting Type | Surface Mount |
|
Package / Case | 1210 (3225 Metric) |
|
Supplier Device Package | 1210 |
|
Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
|
Height - Seated (Max) | 0.094" (2.40mm) |
|
