Category | Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs |
|
Mfr | onsemi |
|
Series | - |
|
Package | Tape & Reel (TR |
|
Product Status | Active |
|
FET Type | N-Channel |
|
Technology | MOSFET (Metal Oxide) |
|
Drain to Source Voltage (Vdss) | 60 V |
|
Current - Continuous Drain (Id) @ 25°C | 12A (Ta) |
|
Drive Voltage (Max Rds On, Min Rds On) | 5V |
|
Rds On (Max) @ Id, Vgs | 104mOhm @ 6A, 5V |
|
Vgs(th) (Max) @ Id | 2V @ 250µA |
|
Gate Charge (Qg) (Max) @ Vgs | 20 nC @ 5 V |
|
Vgs (Max) | ±15V |
|
Input Capacitance (Ciss) (Max) @ Vds | 440 pF @ 25 V |
|
FET Feature | - |
|
Power Dissipation (Max) | 1.5W (Ta), 48W (Tj) |
|
Operating Temperature | -55°C ~ 175°C (TJ) |
|
Mounting Type | Surface Mount |
|

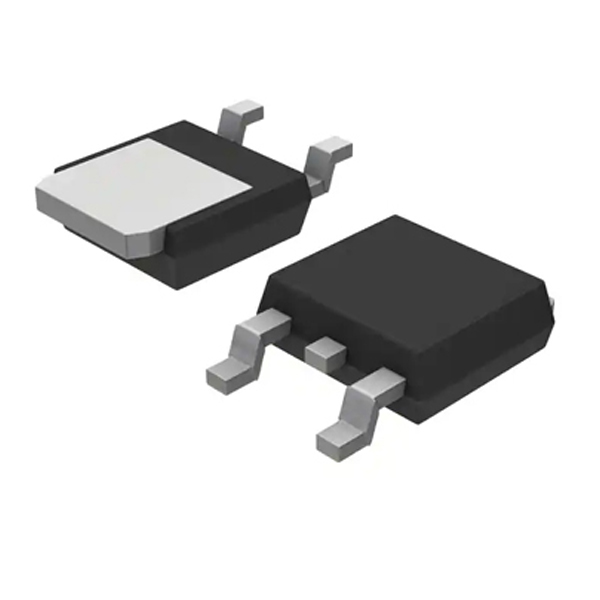

Supplier Device Package | DPAK |
|
Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
|
Base Product Number | NTD3055 |
|
