Category | Integrated Circuits (ICs) Linear Comparators |
|
Mfr | Microchip Technology |
|
Series | - |
|
Package |
|
|
Product Status | Active |
|
Type | General Purpose |
|
Number of Elements | 2 |
|
Output Type | CMOS, Push-Pull, Rail-to-Rail, TTL |
|
Voltage - Supply, Single/Dual (±) | 1.6V ~ 5.5V |
|
Voltage - Input Offset (Max) | 7mV @ 5.5V |
|
Current - Input Bias (Max) | 1pA @ 5.5V |
|
Current - Output (Typ) | - |
|
Current - Quiescent (Max) | 1µA |
|
CMRR, PSRR (Typ) | 70dB CMRR, 80dB PSRR |
|
Propagation Delay (Max) | 8µs |
|
Hysteresis | 6.5mV |
|
Operating Temperature | -40°C ~ 125°C |
|

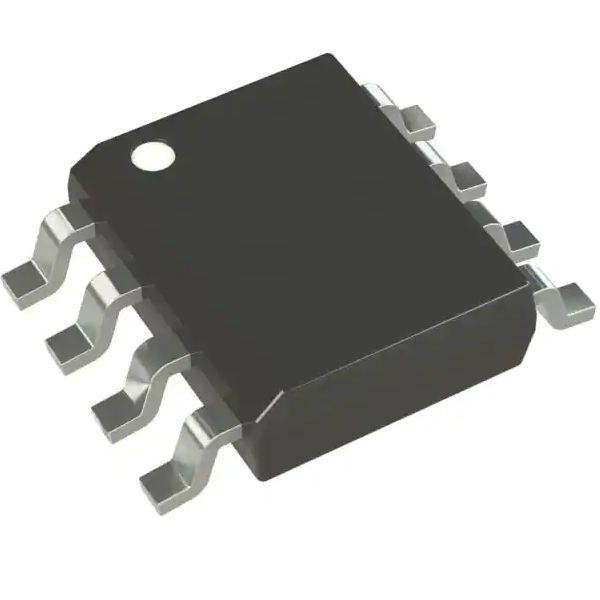

Package / Case | 8-SOIC (0.154", 3.90mm Width) |
|
Mounting Type | Surface Mount |
|
Supplier Device Package | 8-SOIC |
|
Base Product Number | MCP6542 |
|
