Category | Connectors
|
Mfr | TE Connectivity AMP Connectors |
Series | AMPMODU Mod II |
Part Status | Active |

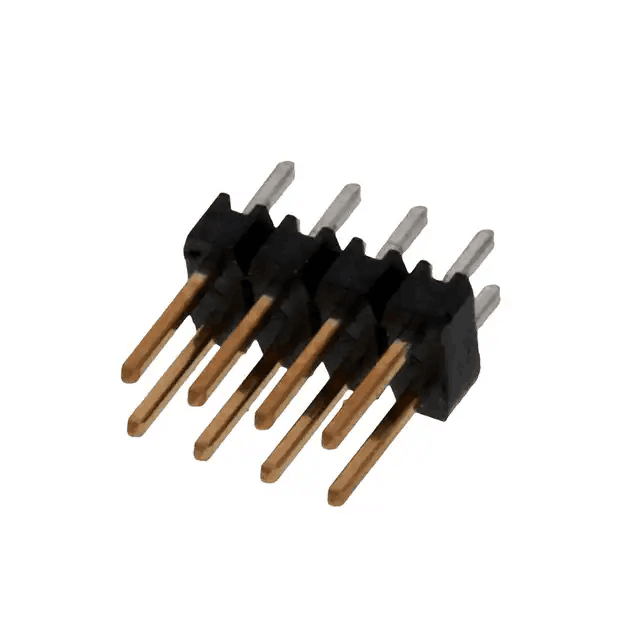

Connector Type | Header, Breakaway |
Contact Type | Male Pin |
Pitch - Mating | 0.100" (2.54mm) |
Number of Positions | 8 |
Number of Rows | 2 |
Row Spacing - Mating | 0.100" (2.54mm) |
Number of Positions Loaded | All |
Style | Board to Board or Cable |
Shrouding | Unshrouded |
Mounting Type | Through Hole |
Termination | Solder |
Fastening Type | Push-Pull |
Contact Length - Mating | 0.230" (5.84mm) |
Contact Length - Post | 0.120" (3.05mm) |
Overall Contact Length | 0.440" (11.18mm) |
Insulation Height | 0.090" (2.29mm) |
Contact Shape | Square |
Contact Finish - Mating | Gold |
Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
Contact Finish - Post | Tin |
Contact Material | Copper Alloy |
Insulation Material | Liquid Crystal Polymer (LCP) |
Features | - |
Operating Temperature | -65°C ~ 105°C |
Ingress Protection | - |
Material Flammability Rating | UL94 V-0 |
Insulation Color | Black |
Current Rating (Amps) | 3A |
Voltage Rating | - |
Mated Stacking Heights | - |
Contact Finish Thickness - Post | 100.0µin (2.54µm) |
Applications | - |
Base Product Number | 146256 |
