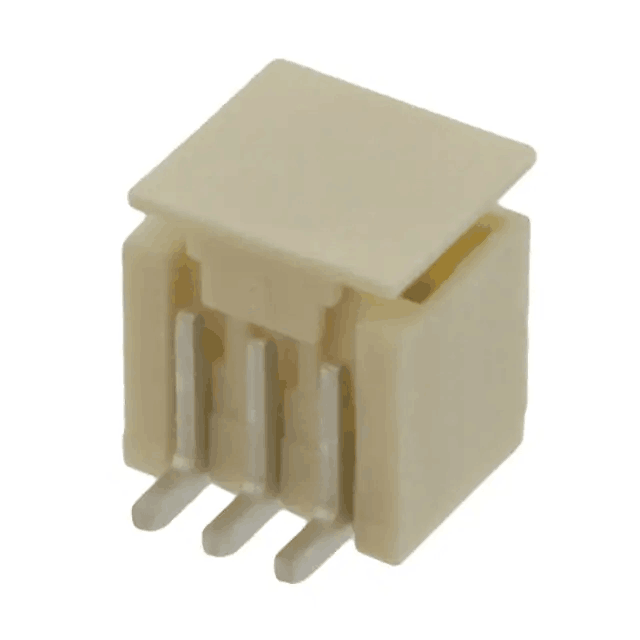

Category | Connectors
|
Mfr | Molex |
Series | Pico-SPOX 87437 |
Package | Tape & Reel (TR) Cut Tape (CT) |
Part Status | Active |
Connector Type | Header |
Contact Type | Male Pin |
Pitch - Mating | 0.059" (1.50mm) |
Number of Positions | 3 |
Number of Rows | 1 |
Row Spacing - Mating | - |
Number of Positions Loaded | All |
Style | Board to Cable/Wire |
Shrouding | Shrouded - 4 Wall |
Mounting Type | Surface Mount |
Termination | Solder |
Fastening Type | Push-Pull |
Contact Length - Mating | 0.106" (2.70mm) |
Contact Length - Post | - |
Overall Contact Length | - |
Insulation Height | 0.199" (5.05mm) |
Contact Shape | Square |
Contact Finish - Mating | Tin |
Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
Contact Finish - Post | Tin |
Contact Material | Brass Alloy |
Insulation Material | Polyamide (PA), Nylon, Glass Filled |
Features | Pick and Place |
Operating Temperature | - |
Ingress Protection | - |
Material Flammability Rating | UL94 V-0 |
Insulation Color | Beige |
Current Rating (Amps) | - |
Voltage Rating | - |
Mated Stacking Heights | 7.4mm |
Contact Finish Thickness - Post | - |
Applications | General Purpose, Medical |
Base Product Number | 087437 |
