Category | Integrated Circuits (ICs) Embedded Microcontrollers |
|
Mfr | Microchip Technology |
|
Series | PIC® XLP™ 16F |
|
Package | Tape & Reel (TR) |
|
Product Status | Active |
|
Core Processor | PIC |
|
Core Size | 8-Bit |
|
Speed | 20MHz |
|
Connectivity | I²C, LINbus, SPI, UART/USART |
|
Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
|
Number of I/O | 17 |
|
Program Memory Size | 14KB (8K x 14) |
|
Program Memory Type | FLASH |
|
EEPROM Size | - |
|
RAM Size | 512 x 8 |
|
Voltage - Supply (Vcc/Vdd) | 2.3V ~ 5.5V |
|
Data Converters | A/D 12x10b; D/A 1x5b |
|
Oscillator Type | Internal |
|
Operating Temperature | -40°C ~ 85°C (TA) |
|
Mounting Type | Surface Mount |
|

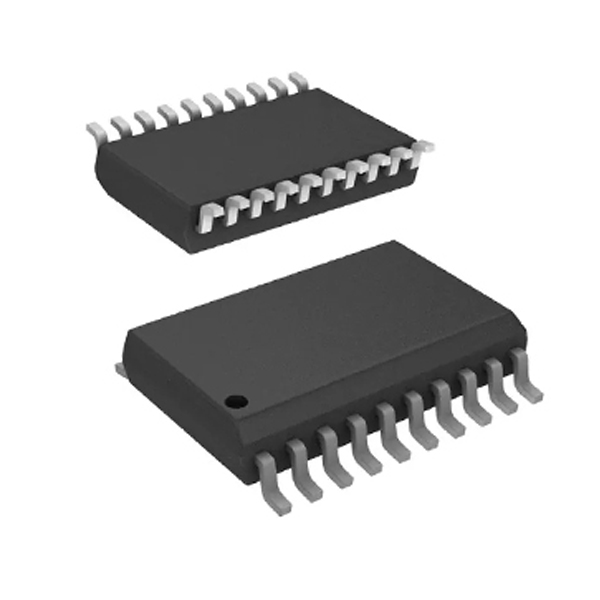

Package / Case | 20-SOIC (0.295", 7.50mm Width) |
|
Supplier Device Package | 20-SOIC |
|
Base Product Number | PIC16F1509 |
|
