Category | Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs |
|
Mfr | onsemi |
|
Series | - |
|
Package | Tape & Reel (TR) |
|
Product Status | Active |
|
FET Type | N-Channel |
|
Technology | MOSFET (Metal Oxide) |
|
Drain to Source Voltage (Vdss) | 100 V |
|
Current - Continuous Drain (Id) @ 25°C | 300A (Tc) |
|
Drive Voltage (Max Rds On, Min Rds On) | 10V |
|
Rds On (Max) @ Id, Vgs | 2mOhm @ 80A, 10V |
|
Vgs(th) (Max) @ Id | 4.5V @ 250µA |
|
Gate Charge (Qg) (Max) @ Vgs | 133 nC @ 10 V |
|
Vgs (Max) | ±20V |
|
Input Capacitance (Ciss) (Max) @ Vds | 9760 pF @ 50 V |
|
FET Feature | - |
|
Power Dissipation (Max) | 429W (Tc) |
|
Operating Temperature | -55°C ~ 175°C (TJ) |
|
Mounting Type | Surface Mount |
|

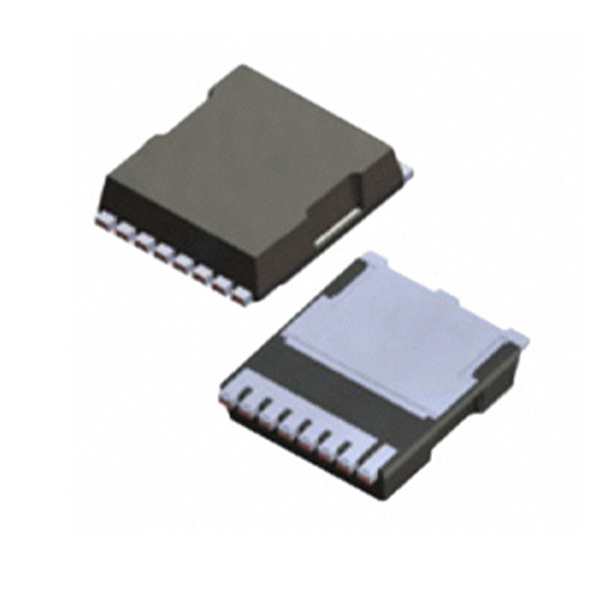

Supplier Device Package | 8-HPSOF |
|
Package / Case | 8-PowerSFN |
|
Base Product Number | FDBL0200 |
|
