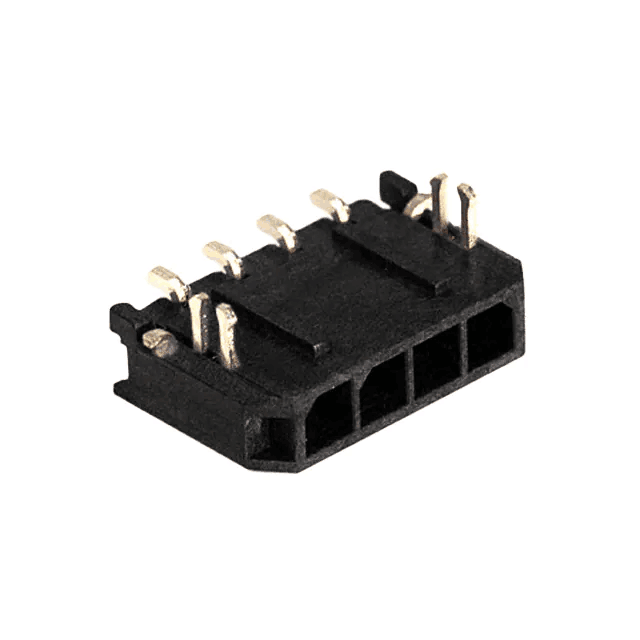

Category | Connectors
|
Mfr | Molex |
Series | Micro-Fit 3.0 43650 |
Package | Tape & Reel (TR) Cut Tape (CT) |
Part Status | Active |
Connector Type | Header |
Contact Type | Male Pin |
Pitch - Mating | 0.118" (3.00mm) |
Number of Positions | 4 |
Number of Rows | 1 |
Row Spacing - Mating | - |
Number of Positions Loaded | All |
Style | Board to Cable/Wire |
Shrouding | Shrouded - 4 Wall |
Mounting Type | Surface Mount, Right Angle |
Termination | Solder |
Fastening Type | Locking Ramp |
Contact Length - Mating | - |
Contact Length - Post | - |
Overall Contact Length | - |
Insulation Height | 0.172" (4.37mm) |
Contact Shape | Square |
Contact Finish - Mating | Gold |
Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
Contact Finish - Post | Tin |
Contact Material | Brass |
Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled |
Features | Board Lock |
Operating Temperature | - |
Ingress Protection | - |
Material Flammability Rating | UL94 V-0 |
Insulation Color | Black |
Current Rating (Amps) | - |
Voltage Rating | - |
Mated Stacking Heights | - |
Contact Finish Thickness - Post | 100.0µin (2.54µm) |
Applications | General Purpose, Medical, Military, Telecommunications |
Base Product Number | 043650 |
